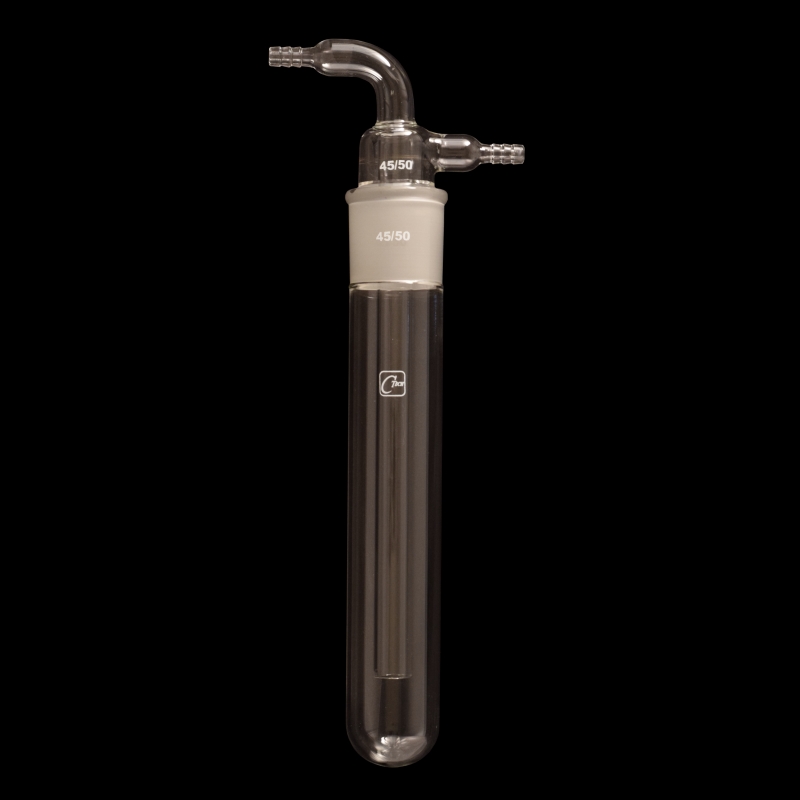

AL-4087-004: Cold trap, with ground joint

Two piece construction for easy removal of condensate. Inlet and outlet are 180 degrees apart for installation into a variety of vacuum systems. Top piece has a standard taper inner joint and body has a standard taper outer joint. Body length is the overall length from the top of the joint to the bottom of the round bottom. Serrated hose connections have an O.D. of 11mm at the largest.

Ground joint 45/50. OD of the body 50mm. Length of the tube 235mm. Inner tube OD 12.5mm. Hose connections have an OD of 11mm at the highest serrations.

From Factory - Est. Availability: Unknown at this time.

Please, contact us to place a backorder. Thank you.

Price: $85.95
