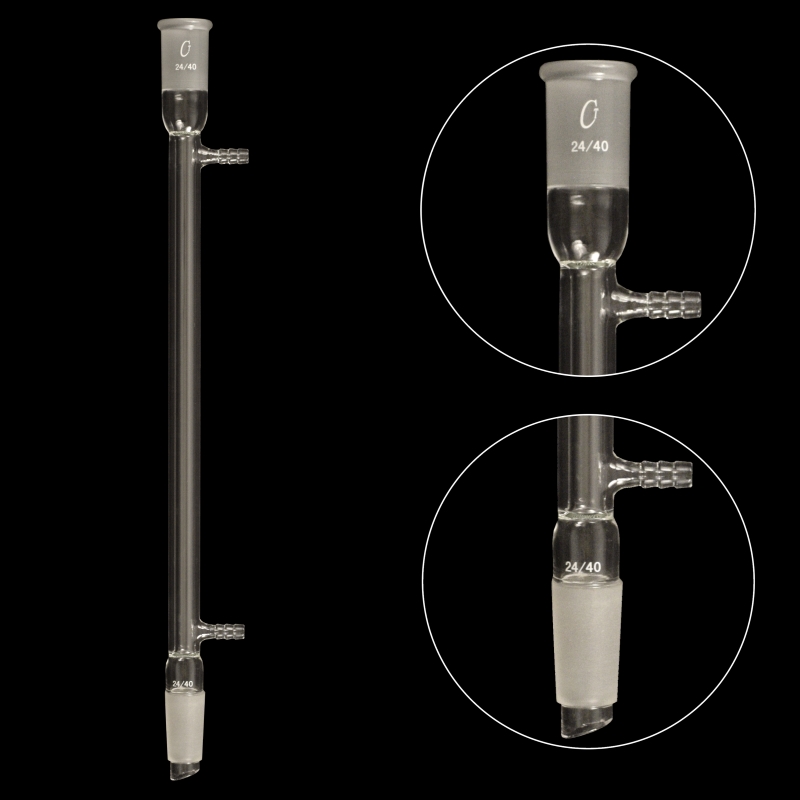

CD-0015-007: Liebig Condenser, with Narrow Jacket

Narrow annular space between jacket and inner tube of the West condenser provides for excellent cooling efficiency due to the increased flow rate of water. Condenser has an upper taper outer joint and a lower inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.

Length of jacket 250mm. Upper outer joint 24/40. Lower inner joint 24/40.
